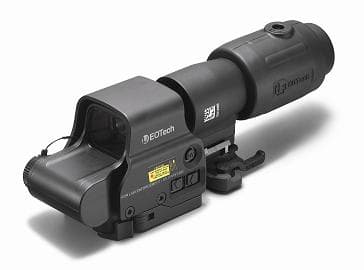

Eotech HHS I Holographic Hybrid Sight with (Flip To The Side Magnifier)


Eotech HHS I with (Flip To The Side Magnifier)


For the infantryman, target ranges vary in ever-changing battlefield conditions. The Eotech HHS I provides a solution for engaging threats in CQB situations, then quickly transitioning to a 500m targeting or surveillance situation, and then quickly back to a 25m room clearing exercise. Instant transition is achieved through a quick Flip -to Side (FTS) mount that offers a simple, quick disconnect feature to remove the magnifier and base. This durable, night vision compatible system offers wide field optical performance with superior light transmission for visibility in extreme low light conditions.

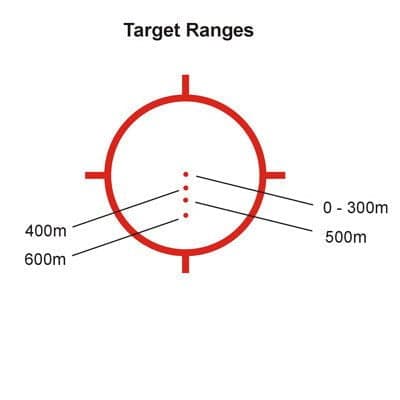

The Eotech EXPS3-4 is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. The use of a magnifier is stongly recommended.

Eotech HHS I Shortest model sight yet! This sight is smaller than the former N-cell battery sight (511⁄551) and runs on a single 123 battery. It also has a longer battery life than the N-cell style sights. Smaller,lighter and always fast with three reticle options. With the new single battery configuration, the EXPS3 allows more rail space than ever, leaving more room for rear iron sights or NV mount.

Why Buy Eotech HHS I HOLOgraphic Weapon Sight ?

Electronic Features the HWS uses state-of-the-art digital electronics design. Twenty brightness levels ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up/down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound.

The HOLOgraphic Advantage,The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim.

The Eotech HHS I HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. All user controls are flush to the HWS’s streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operator’s peripheral vision and ultimately gaining greater control of the engagement zone.

In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the HWS remains fully operational , with point of impact being maintained. Even in such extreme cases where the laminated window is shattered, the HWS is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target…the operator.

Xtreme Guns and Ammo carries the full line of EOTECH Optics and Sights at the Best Price. Shop online, chat with EOTECH pros during business hours, or call 832-363-3783 for answers to all of your EOTECH questions and needs.

Eotech HHS I Features

Aiming dots may not be distinguishable without magnifcation.
Single transverse 123 battery to reduce sight length
Ballistic reticle specific to .223 caliber munitions
Compatible with Gen I-III+ Night Vision Systems (tandem operation)
Shortened base only requires at most 2 ¾ inch of rail space

Eotech HHS I Operation

Optics: Transmission holography – parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 3.5 inch x 2.4 inch x2.8 inch
Weight: 11.20 oz (317 grams)
Temperature: – 40 to 150 F
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Color/Finish: Non reflective black with hard coat finish
Adjustment (per click): 0.5 MOA (½ inch at 100 yds), .25 MOA (¼ inch at 50 yds.)
Adjustment Range: +⁄- 40 MOA travel
Mount: 1 inch Weaver or Picatinny (MIL-STD-1913) quick release rail,Adjustable for width variation
Return to Zero: Repeatable to 2 MOA after re-mounting
Night Vision Comatibility: 10 brightness setting (generation I-III+)

Eotech HHS I Heads Up Display Window

Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20 inch x .85 inch (30 x 23mm)
Front Window Material: 1/8 inch solid glass
Rear Window Material: Shatter resistant laminate (3/16 inch thick)
Field of View (100 yds): 30 yds (28m) at a 4 inch eye relief
Reticle : 65MOA circle with 4 (1 MOA) aiming

Eotech HHS I G23FTS Electrical

Brightness Adjustment Range: 146,000 to 1 brightest to lowest
Night Vision Brightness Range: 1280 to1 with NV switch engaged

Battery Life: 600 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling features 10 settings for NV use
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut down: At 8 hrs – programmable to 4 hrs

Eotech HHS I Magnifier

Magnification Fixed: 3.25X
Eye Relief: 1.97″ (50mm)
Length: 4.6″ (117mm)
Weight: 11.9oz (372 grams)
Temperature: -40 to 160 F
Waterproof: 33 ft.
Sealing: Fogproof internal optics
Mount: MIL-STD-1913 rail
Field of View: 6 degrees
Retrofits to all HWS models
Included 7mm riser for raised bases
