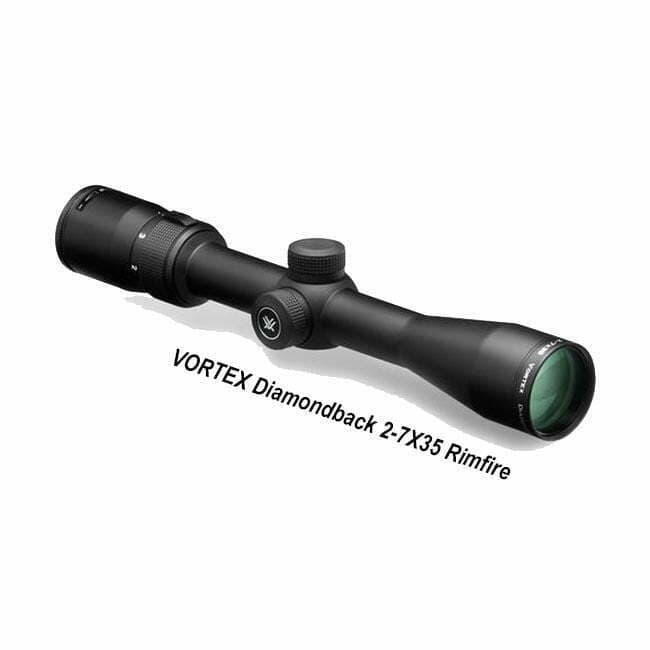

Vortex Diamondback 2-7X35 Rimfire, Second Focal Plane, V-PLEX MOA Reticle.


VORTEX Diamondback 2-7X35 Rimfire

VORTEX Diamondback 2-7X35 Rimfire Ships Free

The Vortex Diamondback 2 7X35 Rimfire Riflescope, is engineered from a solid, single piece of aircraft-grade aluminum alloy. Virtually indestructible and resistant to magnum recoil, it is waterproof and fog-proof thanks to Argon purging. Advanced, fully multi-coated optics make for crystal clear, tack-sharp images. Quality, performance, and reliability are maximum in the Vortex 2-7X35 Rimfire.

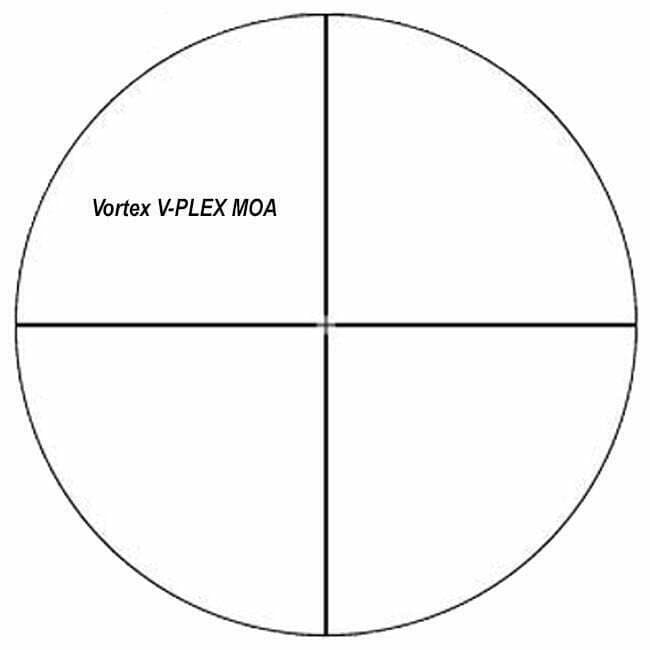

Vortex has equipped the Diamondback 2-7X35 Rimfire with a Second Focal Plane, and a V-PLEX MOA Reticle, an all purpose hunting reticle.

Xtreme Guns and Ammo in Richmond Texas carries the full line of Vortex Optics Rifle Scopes for Tactical and Long Range applications. Feel free to call XGA with all your Vortex Rifle Scope Questions, at 832-363-3783 or chat with us online during regular chat hours.

Vortex Diamondback 2-7X35 Rimfire (Specifications)

  • Magnification: 2-7X
  • Objective Lens Diameter: 35mm
  • Eye Relief: 3.1 inches
  • Reticle: V-PLEX MOA
  • Field of View: 64.3-19.3 feet/100yds
  • Tube Size: 1 inch
  • Turret Style: Capped
  • Adjustment Graduation: 1/4 MOA
  • Travel Per Rotation: 15 MOA
  • Max Elevation Adjustment: 100 MOA
  • Max Windage Adjustment: 100 MOA
  • Parallax Setting: 50 yards
  • Length: 11.61 inches
  • Weight: 13.7 ounces

Vortex Diamondback 2-7X35 Rimfire (Features)

  • Fully Multi-Coated Proprietary Coatings
  • Focal Plane: Second, maintains the ideally-sized appearance.
  • Tube: Single Piece 1 inch diameter
  • Turrets: Capped Reset
  • Aircraft-Grade Aluminum
  • Waterproof: O Ring seals
  • Fogproof: Argon gas purging
  • Shockproof
  • Finish: Hard Anodized, durable, low glare matte surface
  • Fast Focus Eyepiece
  • Precision Glide Erector System
