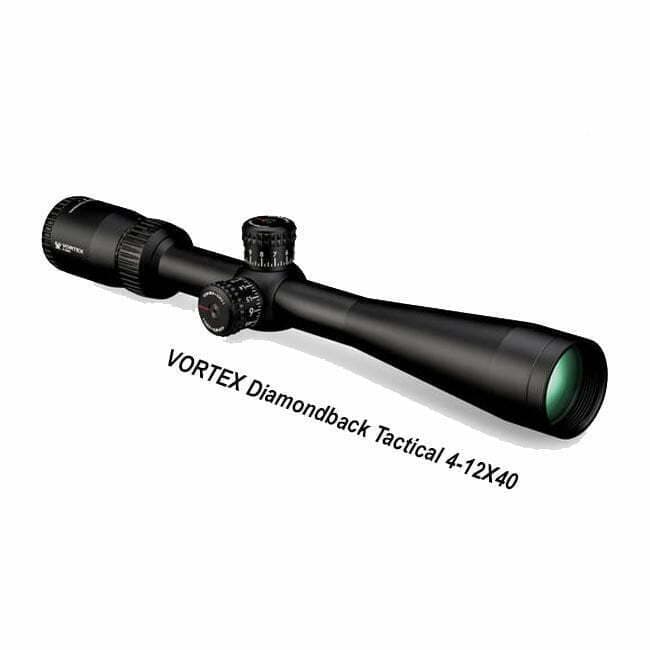

VORTEX Diamondback Tactical 4-12X40

The Vortex Diamondback Tactical 4-12X40 features exposed tactical turrets built for quick and precise bullet drop and wind drift compensation. Dialing elevation and windage is reliable at extended ranges, and returns to zero every time. Optic rotation indicators, integrated into the turrets, provide a visual cue of the turret's position.

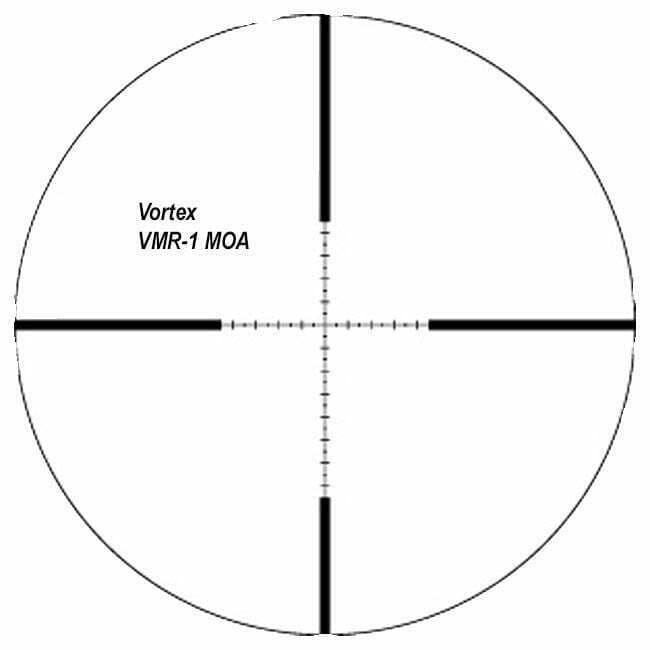

Vortex has equipped the Diamondback Tactical 4-12X40 with the Second Focal Plane, VMR-1 MOA Reticle. Designed to maximize long distance shooting, the VMR-1 MOA is effective determining ranges, holdovers, windage corrections and moving target leads.

Xtreme Guns and Ammo in Richmond Texas carries the full line of Vortex Optics Rifle Scopes for Tactical and Long Range applications. Feel free to call XGA with all your Vortex Rifle Scope Questions, at 832-363-3783 or chat with us online during regular chat hours.

• Magnification: 4-12X
• Objective Lens Diameter: 40mm
• Eye Relief: 3.9 inches
• Reticle: VMR-1 MOA
• Field of View: 23.6-7.9 feet/100yds
• Tube Size: 1 inch
• Turret Style: Tactical
• Adjustment Graduation: 1/4 MOA
• Travel Per Rotation: 12 MOA
• Max Elevation Adjustment: 70 MOA
• Max Windage Adjustment: 70 MOA
• Parallax Setting: 100 yards
• Length: 14.08 inches
• Weight: 17.5 ounces

• XD Lens Elements- low dispersion glass
• Fully Multi-Coated Proprietary Coatings
• Focal Plane: Second, maintains the ideally-sized appearance.
• Tube: Single Piece 1 inch diameter
• Turrets: Exposed Tactical
• Aircraft-Grade Aluminum
• Waterproof: O Ring seals
• Fogproof: Nitrogen gas purging
• Shockproof
• Finish: Hard Anodized, durable, low glare matte surface
• Fast Focus Eyepiece
• Magnification Rib: Raised rib facilitates fast magnification changes
• Precision Force Spring System
• Precision Glide Erector System
