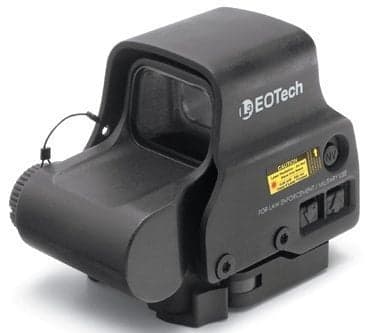

Eotech EXPS3-0 Holographic Red Dot Weapon Sight
EXPS3-0 Shortest model sight yet! This sight is smaller than the former N-cell battery sight (511⁄551) and runs on a single 123 battery. It also has a longer battery life than the N-cell style sights. Smaller,lighter and always fast with three reticle options. With the new single battery configuration, the EXPS3 allows more rail space than ever, leaving more room for rear iron sights or NV mount.
Why Buy EoTech EXPS3-0 HOLOgraphic Weapon Sight ?
Electronic Features the HWS uses state-of-the-art digital electronics design. Twenty brightness levels ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up⁄down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound.
The HOLOgraphic Advantage,The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim.
The EXPS3-0 HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. All user controls are flush to the HWS’s streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operator’s peripheral vision and ultimately gaining greater control of the engagement zone.
In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the HWS remains fully operational , with point of aim⁄impact being maintained. Even in such extreme cases where the laminated window is shattered, the HWS is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target…the operator.
Xtreme Guns and Ammo carries the full line of EOTECH Optics and Sights at the Best Price. Shop online, chat with EOTECH pros during business hours, or call 832-363-3783 for answers to all of your EOTECH questions and needs.
EOTECH EXPS3-0 Features
Single transverse 123 battery to reduce sight length
Shortened base only requires at most 2 ¾ inch of rail space compared to the 4 inch N battery sights
Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
Average battery life at brightness level 12 is roughly 500 –600 hours, 3X battery life of N cell sights
65MOA circle with 1 MOA aiming dot aiming dot
Night Vision (EXPS3) versions. The numbers reflect the number of the buttons on the side of the sight.
EOTECH EXPS3-0 Operation
Optics: Transmission holography – parallax free
Eye Relief: Unlimited
Length/Width/Height: 3.75 inch x 2.4 inch x 2.4 inch
Weight: 8.8 oz
Temperature: – 40 to 150 F
Waterproof: Submersible to 10 ft depth
Sealing: Fogproof internal optics
Color/Finish: Non reflective black with hard coat finish
Adjustment (per click): .5 MOA (½ inch at 100 yds) .25 MOA (¼ inch at 50 yds.)
Adjustment Range: +⁄- 40 MOA travel
Mount: 1 inch Weaver or Picatinny (MIL-STD-1913) quick release rail
Return to Zero: Repeatable to 2 MOA after re –mounting
Night Vision Comatibility: Yes
EOTECH EXPS3-0 Heads-Up-Display Window
Optical Surfaces: Anti –glare coating
Window Dimensions: 1.20 inch x 0.85 inch
Front Window Material: 1/8 inch solid glass
Rear Window Material: Shatter resistant laminate (3/16 inch thick)
Field of (View 100 yds): 30 yds (28m) at a 4 inch eye relief

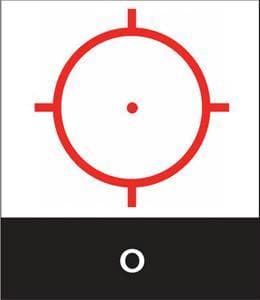

Reticle : 65MOA circle with 1 MOA aiming dot aiming dot
EOTECH EXPS3-0 Electrical
Brightness Adjustment Range: 146,000 to 1 brightest to lowest
Power Source: one 123 lithium battery
Battery Life: 600 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling features 10 settings for NV use
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: At 8 hrs programmable to 4 hrs
