Magpul MBUS Back-Up Sight-Front

Description

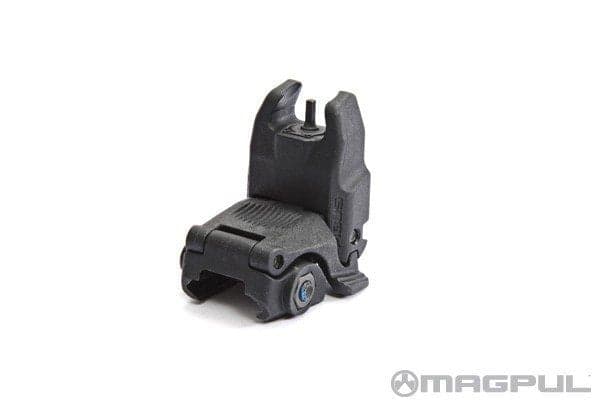

Magpul® MBUS® Back-Up Sight – Front
The MBUS (Magpul Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The Magpul® MBUS® Back-Up Sight – Front is adjustable for elevation and fits most 1913 Picatinny-railed hand guards, but is specifically tailored to the AR15/M16 platform.
Magpul® MBUS® Back-Up Sight – Front Features

UPC:873750004310
Manufactures item Number: MAG247-BLK
Impact resistant polymer construction provides light weight and resists operational abuse
Spring-loaded flip up sight easily activated from either side or by pressing the top Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
Clamps to most any MIL-STD-1913 Picatinny/STANAG 4694 railed hand guard and provides the same height-over-bore as standard A2 irons
Protective wings shield the spring-locking A2 front sight post
Elevation adjustment tool included, but most aftermarket A2 front sight adjustment tools may be used as well

Magpul® MBUS® Back-Up Sight – Front Specifications

MBUS – Front Gen 2
Weight, w/ hardware: 1.2 oz.
Height above rail, stowed: ~0.51 in.
Length, stowed: 2.6 in.
Length, deployed: 1.5 in.
NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed fore end on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.
