MPN: 314205550205R361 SKU: 810027775030 Categories: , , ,

AGM Rattler V2 35-640

Original price was: $4,395.00.Current price is: $3,995.00.

AGM Rattler V2 35-640 Thermal Rifle Scope 35MM 12 Micron 640×512 50Hz Sub 20 Mk

Click to Email Questions +

In Stock!

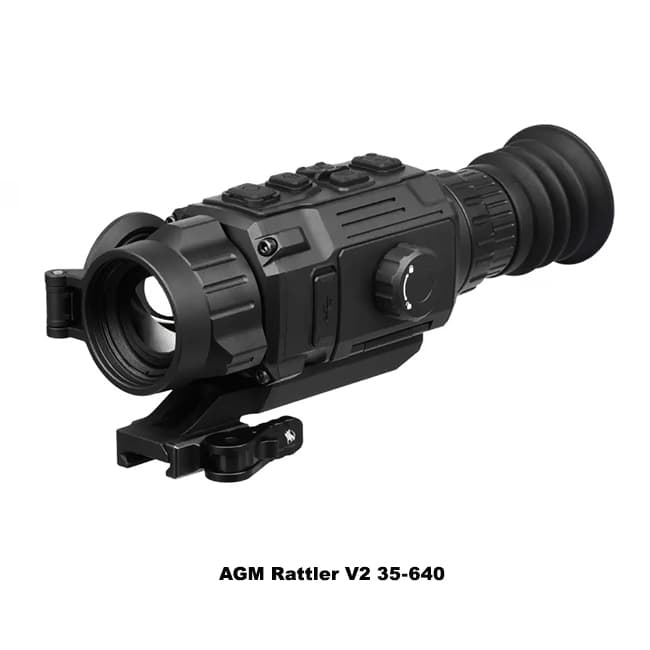

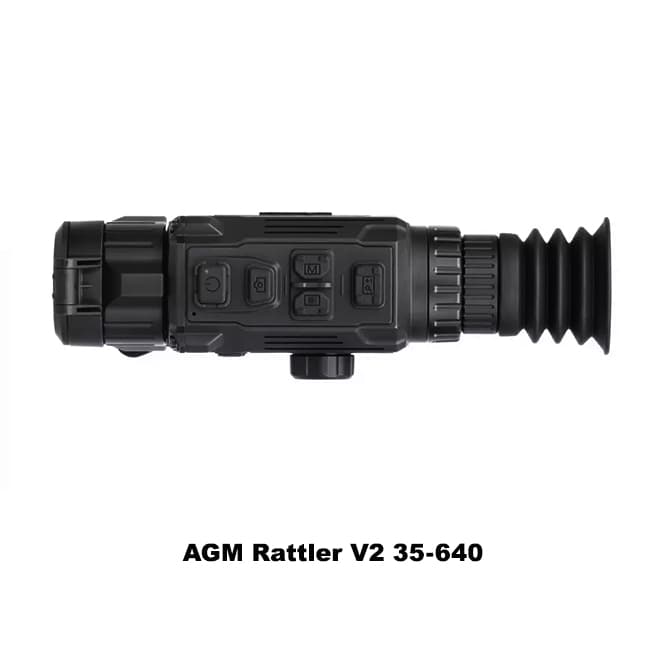

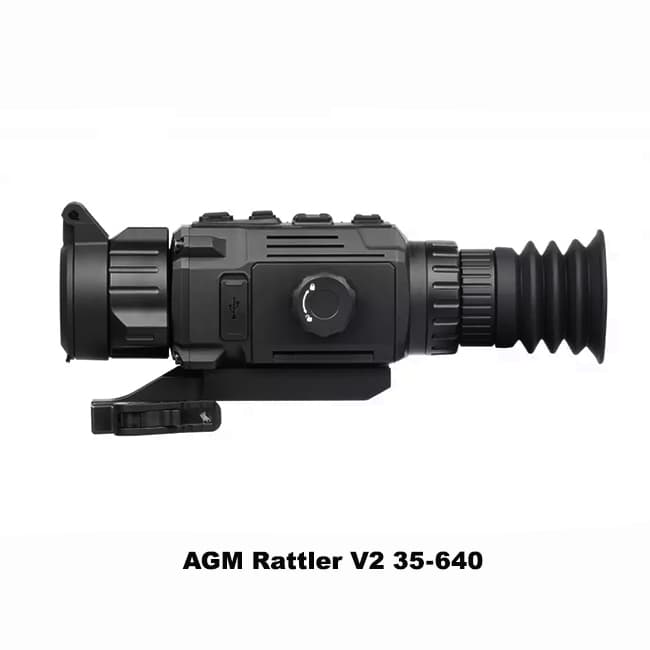

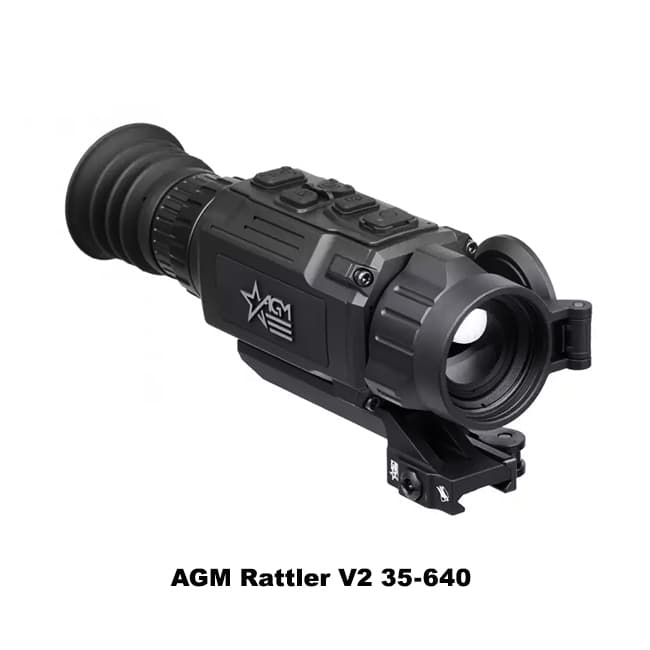

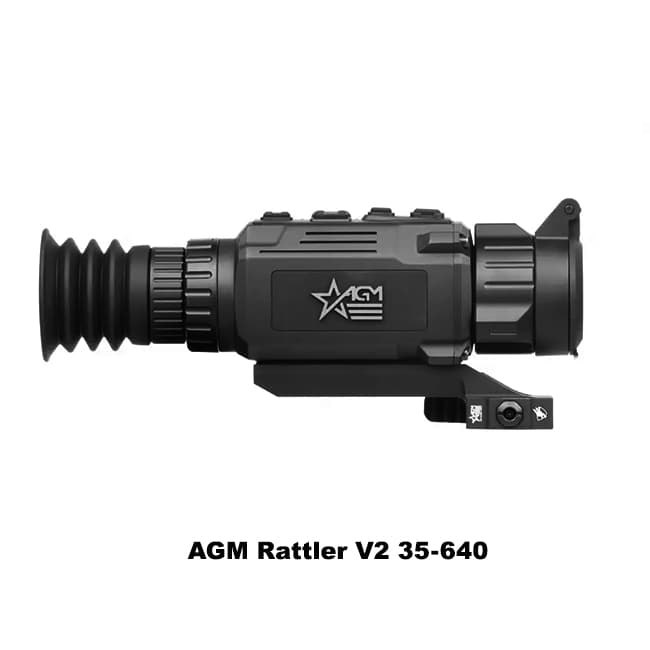

AGM Rattler V2 35-640

AGM Rattler V2 35-640 Thermal Scope Ships Free!

Introducing the all new AGM Rattler V2 35-640 Thermal Rifle Scope, this second generation AGM Rattler has a upgraded scope body, new 35MM Germanium lens and a high resolution 640 x 512 thermal sensor. The AGM Rattler V2 is one of the clearest and most advanced thermal scopes made, featuring a base magnification of 2X with a digital zoom up 16X. Even at 16X zoom, the image quality is super crisp with no degradation and has a detection range of 1800 Yards (1.02 Miles). Gen 2 Rattlers feature a new improved 12 micron thermal sensor with a sub-20 Mk sensitivity rating, which is the highest sensitivity rating on the market. Furthermore, the sub 20 Millikelvin sensor better distinguishes heat signatures and great improves image quality at night and in the rainy, foggy conditions over the Gen 1 Rattlers. Furthermore, its is ultra compact and light weight, weighing in at a mere 1.18 lbs, making it the perfect compact thermal hunting scope. Outfitted with a new rechargeable Lithium-ion batter that provides nine hours of continues run time, and comes with a second nine hour battery if that is not enough. This rattler is built to handle extreme environmental conditions and is IP67 Ratted, with a temperature operation range from -22 Degrees Fahrenheit to 131 Degrees Fahrenheit.

This Second Generation AGM Rattler V2 35-640 now records sound and video via its on board recorder, it also has a picture in picture mode and a snap shot function for taking pictures. The Version 2 Rattler also has Shot activated recording, this recording function records 10 seconds before the shot happened. Perfect for recording your favorite shot, with out having to worry about hitting the record button. Another great feature, the Rattler is outfitted with on board Wi-Fi for screen mirroring to mobile devices, simply down load the AGM Connect app to your desired mobile device. Once installed and setup on your mobile device, you can view and record straight to that device via its wireless Wi-Fi. The Gen 2 Rattler also features 10 reticle options, with four reticle colors, its reticle can also turned off for spotting and scanning. Programmed with four color palettes, White Hot, Black Hot, Red Hot and Fusion, perfect for viewing in different environmental conditions. Also, the Rattler has multiple zeroing profiles, this is perfect for saving zero on multiple caliber rifles or firearms. Every AGM Rattler comes standard with AGM’s limited 3 year warranty.

The AGM Rattler V2 35-640 has a new raised 5 button layout for quick, easy navigation, its raised button design make’s menu navigation with gloves much easier than the previous models. Its Enhanced front focus ring and short power throw levers make focusing easier, with less effort. Outfitted with a American Defense QD mount, this quick disconnect mount allows user to easily remove and reinstall the optic with out loosing zero.

Xtreme Guns and Ammo carries the full line of AGM Thermal Scopes, including the all new AGM Rattler V2 35-640 Thermal Imaging Scope. Still not what your looking for? Shop More AGM Rattlers Online, or call the AGM Pros at 832-363-3783. You can also chat with us online during regular store hours, for answers to all of your AGM Global Vision questions and needs.

AGM Rattler V2 35-640 – (Specifications)

  • AGM Rattler Item Number: 314205550205R361
  • AGM Rattler UPC: 810027775030
  • AGM Rattler Series: V2
  • 35MM Germanium Lens (F/1.0)
  • Detector Type: 12μm Uncooled
  • Refresh Rate: 50 Hz
  • Resolution: 640X512
  • Base Magnification: 2x
  • Digital Zoom: 2x – 16x
  • FOV: 12.5 Degrees × 10.00 Degrees (65 FT @ 100 Yards)
  • Detection Range: 1800 Yards
  • Eye Relief: 45mm
  • Reticle: 10 Reticles, 4 colors (Reticle Can Also Be Turned Off For Hand Held Monocular USE)
  • Color Palettes: 4 (Black Hot, White Hot, Red Hot and Fusion)
  • Scene Modes: Warm and Cold
  • Display: 0.39 inch, OLED 1024X768, 50hz
  • Storage: Built-in EMMC (16GB)
  • Video recording: Yes
  • Picture in Picture Mode: Yes
  • Battery Type: Rechargeable Lithium-ion Battery
  • External Power Supply: 5 Volt DC, 2 Amp, USB Type C
  • Battery Life Operating: Up to 9 Hours at 25 Degrees Celsius with hotspot Off
  • Operating Temperature Range: -30 Degrees Celsius to +55 Degrees Celsius (-22 Degrees Fahrenheit to 131 Degrees Fahrenheit)
  • Degree of Protection: IP67
  • Weight 1.18lb
  • Overall Dimensions: 7.8 X 2.9 X 3.3 inches

AGM Rattler V2 35-640 – (Enhanced Features)

  • Upgraded Scope Body Design and Controls
  • Enhanced Focus Ring with Short Throw
  • Upgraded Lens Caps
  • Two Quick Release Rechargeable Batteries with 9 hour Run Time on 50 HZ, Up to 11 Hours on lower Hz settings
  • Shot Activated Recording
  • Video and Audio Recording
  • Picture in Picture Mode
  • Dead Pixel Correction (You can Fix any Dead Pixels on Viewing Screen)
  • Simplified Menu Navigation For Ease of Use
  • Multiple Zeroing Profiles For Various Calibers and Rifles
  • Accurized AGM QD Scope Mount, to easily remove and reattach scope (With no Point of Shift)
  • Onboard Wi-Fi Hotspot For Connectivity to the AGM App
  • Raised Five Button Layout for Quicker Navigation, Even With Gloves

AGM Rattler V2 35-640 – (Includes)

  • American Defense QD Mount
  • Two Quick Release AGM Rechargeable 9 Hour Batteries
  • AGM Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manuel
  • Carrying Case

Additional information

Weight 6 lbs
Dimensions 12 × 12 × 5 in
