Guide Sensmart TB 630 Clip On

Original price was: $3,899.00.Current price is: $3,499.00.

Guide Sensmart TB 630 Clip On 640×480 Thermal Core 1920×1080 AMOLED HD Display 50 Hz

Click to Email Questions +

Call (832) 363-3783 for availability

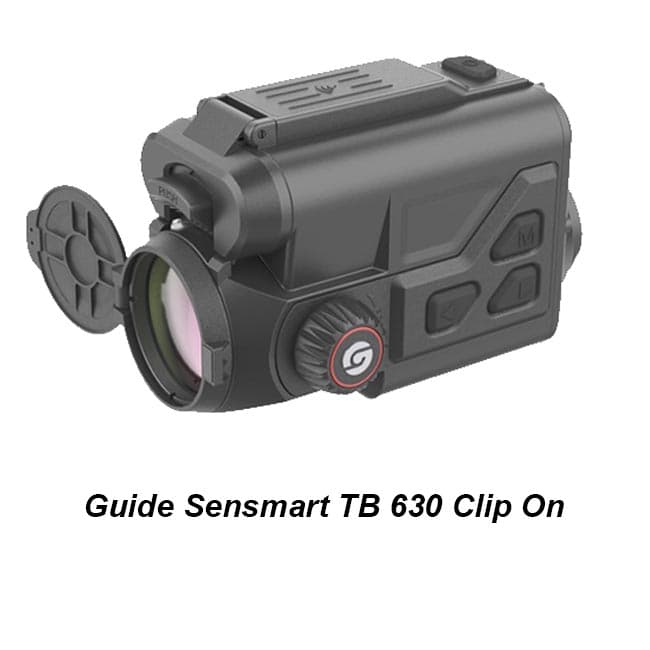

Guide Sensmart TB 630 Clip On

Guide Sensmart TB 630 Clip On Ships Free!

The Guide Sensmart TB 630 Clip On is the compact clip-on that bridges the gap between precision and portability. Precision is premium with the magnesium alloy housing that decreases the weight. A full-HD 0.39 inch AMOLED 1920×1080, on every TB Series Clip-on, delivers a wider viewing angle and richer color. Equipped with weights that are over 20% lighter than those of similar products, Guide’s TB630 Clip On is the perfect partner for relaxed hunting.

Xtreme Guns and Ammo carries the full line of Guide Sensmart Optics in Stock. Shop Online anytime, or call the Guide Sensmart Pros at 832-363-3783, or chat with the Guide Sensmart Experts during regular store hours, for answers to all of your Guide Sensmart Thermal questions and needs.

Guide Sensmart TB 630 Clip On (Specifications)

  • Part Number: TB630
  • UPC:
  • Type: Uncooled VOx Infrared Detector, 8 to 14μm
  • Max Resolution: 640×512@12μm
  • NETD: 20mK
  • Frame Rate: 50 Hz
  • Magnification: 1x
  • Objective Lens: 35mm, F1.0
  • Field of View: 12.5° x 9.4°
  • FOVm@100: 22×16
  • Detection Range: 1400m/yd
  • Display: 0.39 inch AMOLED 1920×1080
  • Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece: Exit pupil distance 20mm; Zoom 9.5x
  • WIFI: 2.4G, 5G
  • Interface: USB Type-C (Power supple/USB2.0)
  • Others: Microphone, Bluetooth
  • Recording Function: Photo/Video (Audio Recording Included)
  • Memory Capacity: 64GB
  • Battery Type: Two replaceable 18650 batteries
  • Operating Time: 10 Hours
  • Operating Temp: -20C to 50C/-4F to +122F
  • Shock: 1000G at 1 ms half sine pulse (as per IEC60068-2-27)
  • Encapsulation: IP68
  • Weight: 440 grams/15.52ounces
  • Size: 128x79x79mm/5.04×3.11×3.11inches
  • Included: Device, Battery Charger, Two 18650 Batteries, 5V2A Adapter, USB Type-C Cable, Quick Use Guide, Warranty Card.
  • Optional: 18650 Battery, Bluetooth Remote Control, Cover Ring Adapter
