Guide Sensmart TD 631 LRF Thermal Monocular

Original price was: $2,249.00.Current price is: $2,029.00.

Guide Sensmart TD 631 LRF Thermal Monocular 640×480 Thermal Core 0.23 inch AMOLED 640×400 Display 50 Hz

Click to Email Questions +

Call (832) 363-3783 for availability

Description

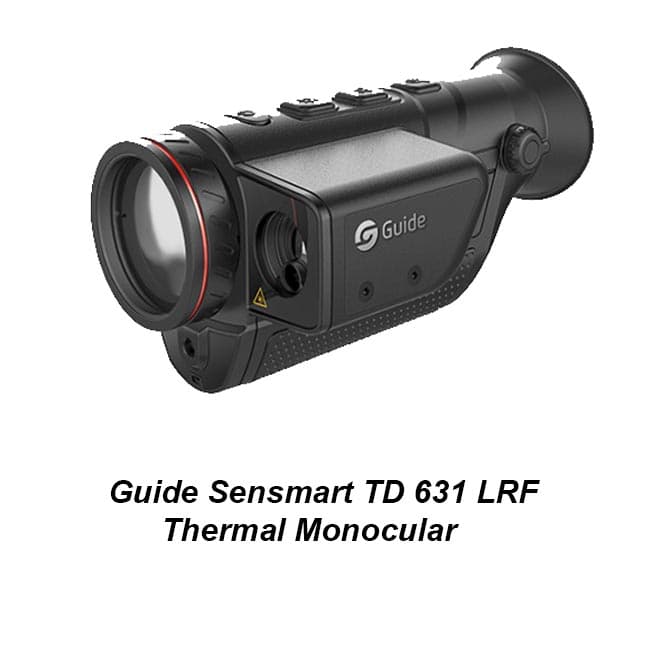

Guide Sensmart TD 631 LRF Thermal Monocular


Guide Sensmart TD 631 LRF Thermal Monocular Ships Free!

The Guide Sensmart TD 631 LRF Thermal Monocular, Gen2, is a full-featured, handheld thermal imaging monocular and the first entry-level optic of its kind. Owning all of the characteristics of the former generation, this monocular is lightweight, portable and easy to operate. Integrating a high-precision laser rangefinder module, the 631LRF accurately detects targets within 600 meters. Ideal for outdoor night vision, the TD631LRF offers extremely clear imaging with a high-brightness AMOLED display and 640×480 resolution. Additionally, real time sharing with WIFI is a valuable feature and new user interface simplifies operation without language restrictions. Firmware updates are provide with the TargetIR APP to deliver high efficiency on every Guide Sensmart TD 631 LRF Thermal Monocular.

Every Guide Sensmart TD 631 LRF Thermal Monocular uses image optimization with enhanced image processing algorithms to provide high quality rendering of both target objects and background. Users can enjoy 8 hours of use with the single, replaceable 18650 battery included with the Guide Sensmart TD631LRF Thermal Monocular.

Xtreme Guns and Ammo carries the full line of Guide Sensmart Optics in Stock. Shop Online anytime, or call the Guide Sensmart Pros at 832-363-3783, or chat with the Guide Sensmart Experts during regular store hours, for answers to all of your Guide Sensmart Thermal questions and needs.

Guide Sensmart TD 631 LRF Thermal Monocular (Specifications)

  • Part Number: TD631LRF
  • UPC: 6970883550999
  • Type: Uncooled VOx Infrared Detector, 8 to 14μm
  • Max Resolution: 640×480@12μm
  • NETD: 35mK
  • Frame Rate: 50Hz
  • Objective Lens: 35mm, F1.0
  • Field of View: 12.5° x 9.4°
  • FOV m @100m: 22×16
  • Magnification: 1.7x-13.6x
  • Detection Range: 1400m/yd
  • Display: 0.23 inch AMOLED 640×400
  • Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot
  • Eyepiece: Exit pupil distance 12mm; Diopter: -4 to +2; Zoom: 18x
  • Laser Rangefinder: 600m/yd
  • WIFI: 2.4G
  • Interface: USB Type-C
  • Battery Type: Single, replaceable 18650 Battery
  • Operating Time: 8 Hours
  • Encapsulation: IP66
  • Weight: 399 grams/ 14.07 ounces
  • Size: 153x77x74mm / 5.91×3.03×2.91 inches
  • Standard: A device, lens cover and lanyard, wrist strap, carry bag, eye mask, battery charger, single 18650 battery, USB Type-C cable, quick use guide and a warranty card.
