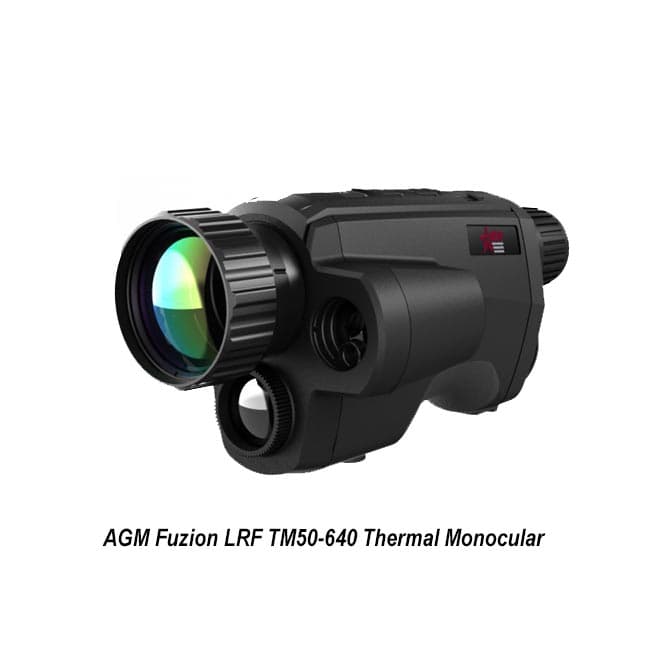

AGM Fuzion LRF TM50-640 Thermal Monocular

Original price was: $3,844.00.Current price is: $3,495.00.

AGM Fuzion LRF TM50-640 Thermal Monocular

Click to Email Questions +

Call (832) 363-3783 for availability


AGM Fuzion LRF TM50-640 Thermal Monocular

AGM Fuzion LRF TM50-640 Thermal Monocular Ships Free!

The AGM Fuzion LRF TM50-640 Thermal and Digital Monocular offers the most technologically advanced features in a Day/Night optic. A high-sensitivity 12 micron 640X512 thermal detector is the power within this monocular that ensures human sized heat signatures are detectable up to 1.6 miles (2600m). Additionally, foliage and background imagery is crisp and detailed in closer ranges. Towering above most monoculars on the market, the Fuzion LRF TM50-640 includes a built-in 600m laser rangefinder.

Every AGM Fuzion LRF TM50-640 Monocular is packed with many features and software improvements. A 60mm Germanium lens with 1.2 aperture, 1920×1080 ultra low light SMOS sensor, various viewing modes, fusion imaging, multiple color palettes, 3X base magnification with 8X digital zoom, picture-in-picture mode, and up to 5 hours of battery life on one rechargeable 19650 battery. A USB Type-C port allows for external power and IP67 protection makes it waterproof. Also included is a wrist strap, charger, and AGM’s 5 year, transferable warranty on the AGM Fuzion LRF TM50-640 Monocular.

Xtreme Guns and Ammo carries the full line of AGM Night Vision and Thermal Optics. Shop Online, call the AGM Pros at 832-520-2515, or chat during regular store hours, for answers to all of your AGM Global Vision questions and needs.

AGM Fuzion LRF TM50-640 Thermal Monocular (Features)

  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel or both
  • 12μm, 35mk NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 5 year warranty

AGM Fuzion LRF TM50-640 Thermal Monocular (Specifications)

  • Part Number: 7142510001306FL6
  • UPC: 850038039271
  • Detector Type: 12μm VOx Uncooled Focal Plane Arrays
  • Resolution: 640 X 512
  • Refresh Rate: Sensor 50HZ
  • Response Waveband: 8μm to 14μm
  • Thermal Lens Focal Length: 50mm
  • Aperture: F/1.2
  • Field of View: 8.8° x 7°
  • Detection Range: 2,600 m/yd
  • Magnification: 3X-24X
  • Digital Zoom: 1X, 2X, 4X, 8X
  • Monitor: 1024X768, .039 inch, OLED, 50Hz
  • Flat Field Correction: Auto, Manual, External
  • Palettes: Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
  • Highest Temperature Spot Tracking
  • Scene Mode: Jungle, Recognition
  • Optical Image Sensor: 400-1000 nm
  • Distance Measurement: Laser Rangefinder up to 600m
  • Laser Wavelength: Class 1
  • Laser Safety Class: 1
  • Hot Spot
  • Sleep Mode
  • Storage: Built-in EMMC 16 GB
  • On board Video Recording
  • Snapshot Capture
  • CVBS Output: Via USB
  • Battery: One 18650 rechargeable
  • Battery Life: up to 5 hours
  • Battery Capacity Display
  • External Power Supply: 5VDC/2 A USB Type C Interface
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Shock and Vibration: 75-g/ms
  • Protection Level: IP67
  • Overall Dimensions: 7.2 X 3.4 X 2.9 inches
  • Weight: 1.15 pounds
