AGM Rattler TC50-640

Original price was: $4,064.00.Current price is: $3,695.00.

AGM Rattler TC50-640 Thermal Clip On 50MM 12 Micron 640×512 50Hz

Click to Email Questions +

Only 2 left in stock (can be backordered)

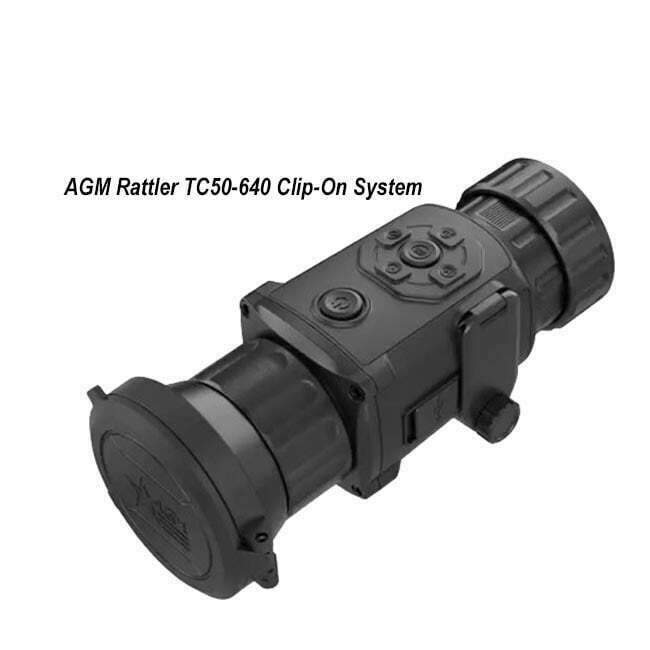

AGM Rattler TC50-640

AGM Rattler TC50-640 Thermal Clip On System Ships Free!

The AGM Rattler TC50-640 Clip On System is a compact thermal imaging clip-on system. The Rattler allows moving from day optics into thermal imaging without special tools or equipment. Clear images, under all environmental conditions, no matter how harsh, are a product of the 640X512 resolution thermal detector and 1024X768 OLED monitor. The Rattler TC50-640 is easily attached in front of a rifle scope with magnification up to 8x.

Xtreme Guns and Ammo carries the full line of AGM Night Vision and Thermal Optics. Shop Online, call the AGM Pros at 832-520-2515, or chat during regular store hours, for answers to all of your AGM Global Vision questions and needs.

AGM Rattler TC50-640 (Specifications)

  • Part Number: 3092756006TC51
  • UPC: 810027779274
  • Detector Type: 12μm VOx Uncooled Focal Plane Arrays
  • Resolution: 640 X 512
  • Refresh Rate: Sensor 50HZ / OLED 50HZ
  • Response Waveband: 8μm to 14μm
  • Lens System: 50mm F/1.0
  • Field of View: 8.8° x 7.0°
  • Magnification: 1X
  • Exit Pupil: 22mm
  • Observation Distance: 2500m
  • Monitor: 1024X768, .039 inch, OLED
  • Uniformity Correction: Auto, Manual, External
  • Palettes: Black Hot, White Hot, Red Hot, Fusion
  • Highest Temperature Spot Tracking
  • Scene Mode: Jungle, Recognition
  • Distance Measurement
  • Highest Temperature Spot Tracking
  • Standby Mode
  • Storage: Built-in EMMC 16 GB
  • On board Video Recording
  • Snapshot Capture
  • CVBS Output: Via USB
  • Battery: Two CR123A 3V Lithium or two RCR123 Rechargeable
  • Battery Life: up to 4.5 hours
  • Battery Capacity Display
  • External Power Supply: 5VDC/2 A USB Type C Interface
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Shock and Vibration: 75-g/ms
  • Protection Level: IP67
  • Shock and Vibration: 750g/ms
  • Overall Dimensions: 6.0 X 3.1 X 2.6 inches
  • Weight: 1.08 pounds
