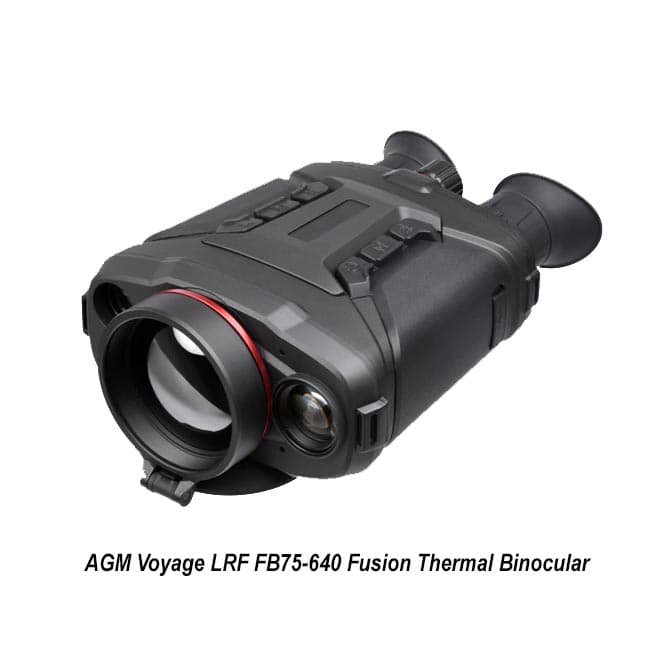

AGM Voyage LRF FB75-640 Fusion Thermal Binocular

Original price was: $8,024.00.Current price is: $7,295.00.

AGM Voyage LRF FB75-640 Fusion Thermal Binocular

Click to Email Questions +

Call (832) 363-3783 for availability


AGM Voyage LRF FB75-640 Fusion Thermal Binocular

AGM Voyage LRF FB75-640 Fusion Thermal Binocular Ships Free!

The Voyage LRF FB75-640 Fusion Thermal Binocular is a thermal and Digital Day/Night Vision binocular that sports a built in Laser Range Finder. Offering a 12 Micron 640×512 (50 HZ), it is the primary engine within the main thermal viewing channel. Owning a 75 mm lens along with an industry leading sensitivity rating of sub-20mK (millikelvin), this sensor ensures that human-sized heat signatures are detectable up to 2.2 miles. Foliage and background imagery is crisp and detailed in closer ranges. Towering above other thermal binoculars on the market, the Voyage is equipped with a digital night vision channel that aides in target recognition after the potential target has been detected. Offering a built-in 1000m Laser Rangefinder, the Voyage LRF is catapulted to the top of the heap with the 64GB of internal memory and Wi-Fi compatibility.

Every AGM Voyage Fusion Binocular is loaded with features that include; a high-sensitivity sub-20mK thermal detector, 50mm Germanium lens with a 0.9 aperture, 2560×1440 ultra-low light CMOS sensor, multiple viewing modes along with fusion imaging and a variety of color palettes. Additionally, 5X base magnification with 16X digital zoom, picture-in-picture mode, built-in laser rangefinder, GPS module, inclination sensor, Digital Detail Enhancement (DDE), and up to 8 hours of battery life make this Binocular a must have! Users also love the USB Type-C port for external power capabilities, IP67 waterproof rating, included hard carrying case, neck strap and AGM’s 5 Year Transferable Warranty!

Xtreme Guns and Ammo carries the full line of AGM Night Vision and Thermal Optics. Shop Online, call the AGM Pros at 832-520-2515, or chat during regular store hours, for answers to all of your AGM Global Vision questions and needs.

AGM Voyage LRF FB75-640 Fusion Thermal Binocular (Specifications)

  • Model: 7142510005308V761
  • UPC: 810027772459
  • Magnification: 5x-80x
  • Interpupillary Distance: 60mm to 70mm
  • Digital Zoom: 1X,2X,4X,8X,16X
  • Detection Range (6ft object) – 3,600 m/yard
  • Flat Field Correction: 905 nm (Class 1)
  • Palettes: Optical, White Hot Thermal, Black Hot Thermal, red Hot Thermal, Image Fusion
  • Diopter Adjustment: -5 to +3 dpt
  • Battery: Three 18650
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
  • Resolution: 640 x 512
  • Pixel Pitch: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • NETD: Less than 20 mK (25°C, F#=1.0)
  • Field of View: 5.9° x 4.7°
  • Aperture: F1.2
  • Lens (Focal Length): 75 mm, Manual focus
  • Eye Relief: 15 mm
  • Monitor: 0.39 inch, OLED 1024X768
  • Storage: Built-in Memory Module (64 GB)
  • Snapshot: JPEG, 1600×1200
  • Video Recording: MP4, 1600×1200
  • Picture in Picture Mode
  • Battery Life: up to 8 hours
  • Battery Capacity Display
  • Protection Level: IP67
  • Mounting: 1/4 inch – 20 UNC
  • Cable Output: USB Type-C
  • Measuring Distance of Laser Rangefinder: Max. 1,000 m
  • Laser Wavelength: 905 nm (Class 1)
  • External Power Supply: 5VDC/2A, Max.10W, Type-C port
  • Weight: 2.5 pounds
  • Overall Dimensions: L- 8.5 X W-6.1 X H-3.5inches
  • Included in Package: Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
