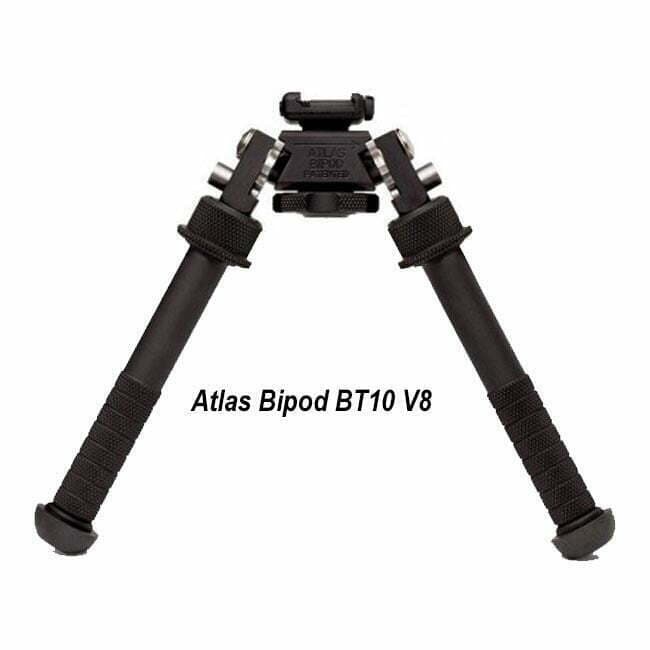

Atlas Bipod BT10 V8

Description

Atlas Bipod BT10 V8

The Atlas bipod offers many features that place it in a category of its own. Those features include legs that move independently and can be deployed in a 45 degree position either forwards or backwards, in the traditional 90 degree position, and facing directly to the front or back, locking securely into 5 positions through a 180 degree arc. It provides the shooter with 30 total degrees left to right Pan as well as 30 total degrees of Cant; making it easy to align your cross hairs on the target regardless of the terrain. Offering the strength and stability that shooters demand, the Atlas provides rock solid support while weighing less than 11 ounces. The Patented Atlas is constructed of the finest materials and built to the highest standards right here in the USA.

Atlas Bipod BT10 V8 Specifications

Manufacturer Item No:BT10
BT10-Mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly
Height Range approximately 4.75 – 9.0″
15 degrees +/- of preloaded Pan
15 degrees +/- of preloaded Cant
Leg positions are; stowed back, 90 degrees straight down, 45 degrees forward and stowed forward
Standard two screw clamp on style
Construction from T6061 Aluminum, Hard Anodized black
Stainless steel springs and fasteners
UHMW components used for smooth tracking
Preload on Pan and Cant can be tightened by means of the knurled knob
Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
Non orientated leg positioning use either hand to move leg into any of the four leg positions
All 4 leg positions are solid allowing the shooter to load the bipod at the 45 and 90 degree positions
Non orientated leg length adjustment, Outer leg slides on the Inner leg locating on any of five positions ¾” apart and can be done by either hand
Optional 3” leg extensions to increase height available
Standard soft durable Rubber feet that are suitable for many surfaces
Optional interchangeable Ski and Multi Spiked style feet can be swapped in the field with the press of a ball plunger with a bullet tip
Optional mounting systems available for Accuracy International and Sako rifles
Estimated range of elevation on the BT10 is 5-9” from the surface up to the rail
Weight 11.0 ounces
Available in black only
Made in America
