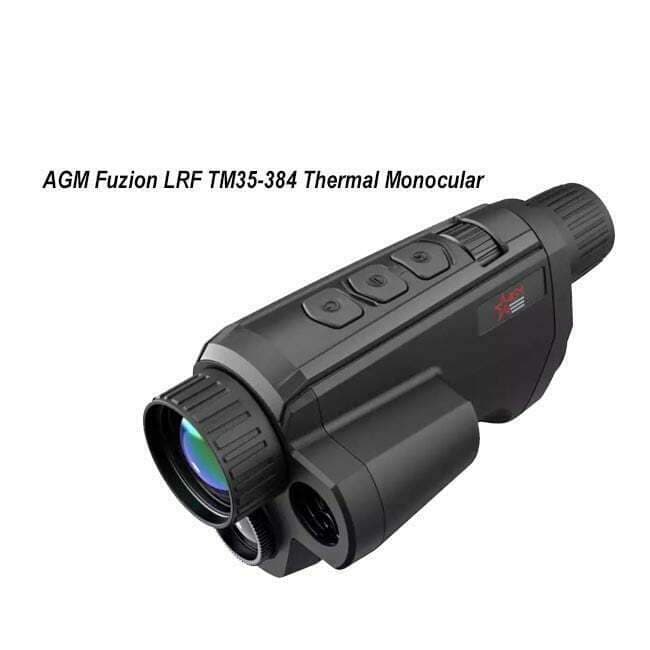

AGM Fuzion LRF TM35-384 Thermal Monocular

Description

AGM Fuzion LRF TM35-384 Thermal Monocular Ships Free!

AGM’s Fuzion LRF TM35-384 Thermal & Optical Bi-Spectrum Monocular is equipped with a Laser Rangefinder to measure target distance. It will quickly detect objects under any environments, even the most extreme fog, rain and snow. Equipped with a 12μm high sensitivity thermal detector, an ultra-low light optical detector, a 1024X768 OLED display and an eyepiece with a large field of view, along with 384X288 resolution, this optic is ready for any mission. Application and adoption is simple with Fuzion’s user-friendly interface, and ergonomic operating controls. Offering three variants of image view: thermal, visible light, and fusion, each one can be easily accessed and used for different environmental conditions. Powered by one 18650 rechargeable Lithium battery, users will enjoy up to 5 hours of operating time. An external power supply can be used to increase the Fuzion LRF Thermal Monocular’s operating time

Xtreme Guns and Ammo carries the full line of AGM Night Vision and Thermal Optics. Shop Online, call the AGM Pros at 832-520-2515, or chat during regular store hours, for answers to all of your AGM Global Vision questions and needs.

AGM Fuzion LRF TM35-384 Thermal Monocular (Features)

• Bi-spectrum image fusion and object highlight
• Detail enhancement and target recognition
• Selection of thermal view channel, visible light channel or both
• 12μm, 35mk NETD high sensitivity thermal detector
• Fast 50Hz imaging
• Digital image processing technology
• Ultra-low illumination optical channel
• Limited 3 year warranty

AGM Fuzion LRF TM35-384 Thermal Monocular (Specifications)

• Part Number: 3142451305FM31
• UPC: 810027779557
• Detector Type: 12μm VOx Uncooled Focal Plane Arrays
• Resolution: 384 X 288
• Refresh Rate: Sensor 50HZ
• Response Waveband: 8μm to 14μm
• Thermal Lens Focal Length: 35mm
• Aperture: F/1.0
• Field of View: 7.5° x 5.7°
• Magnification: 3.5X-28X
• Digital Zoom: 1X, 2X, 4X, 8X
• Observation Distance: 1,653m
• Monitor: 1024X768, .039 inch, OLED, 50Hz
• Flat Field Correction: Auto, Manual, External
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
• Highest Temperature Spot Tracking
• Scene Mode: Jungle, Recognition
• Optical Image Sensor: 1/2 inch progressive scan CMOS, 1960X1200@25fps
• Optical Sensor Wavelength: 400-1000nm
• Optical Module Lens Focal Length: 22mm
• Distance Measurement: Laser Rangefinder up to 600m
• Laser Wavelength: 905nm
• Laser Safety Class: 1
• Hot Spot
• Sleep Mode
• Storage: Built-in EMMC 16 GB
• On board Video Recording
• Snapshot Capture
• CVBS Output: Via USB
• Battery: One 18650 rechargeable
• Battery Life: up to 5 hours
• Battery Capacity Display
• External Power Supply: 5VDC/2 A USB Type C Interface
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Shock and Vibration: 75-g/ms
• Protection Level: IP67
• Overall Dimensions: 6.6 X 3.4 X 2.9 inches
• Weight: 1.15 pounds
